KU

Flexible Rubber
Coll. Scr. & Braid VSD/VFD

0.6/1kV 110°C
Insulation X-HF-110

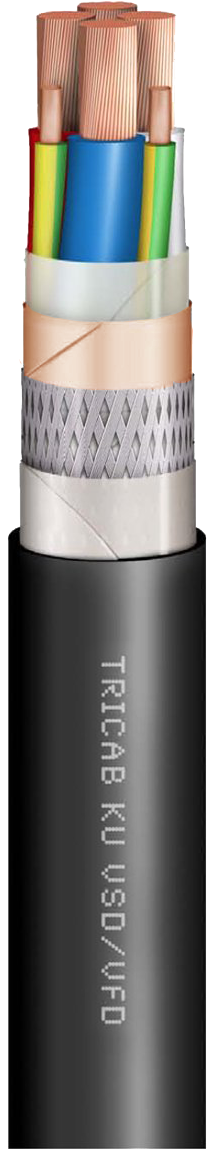

KU_CU

Typical Applications

Suitable for fixed wiring application where EMC protection is required.

Standard Core Configuration

1C:
ccs_logo



Other Colours available on request

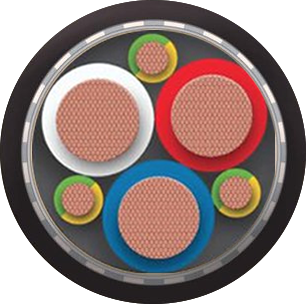

Construction

Conductor Fine wire plain or tinned annealed copper to IEC 60228 and AS/NZS 1125.

Insulation LSFLEX® R-70 (X-HF-110), Cross-Linked, Thermoset, Elastomeric.

Separator Polypropylene tape

Screen Copper Laminate tape

Braid Tinned Copper Wire braid(90%)

Separator Polypropylene tape

Jacket Low Friction E-RUBBER® S-20 Thermoplastic, Elastomeric, Flame Retardant. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Submersible to 500 meters. Best Practice PVC. Anti-Termite/Rodent Jacket is available.

Operating Temperature

  • -15°C to 110°C

Voltage Rating

  • 600/1000Volts

Core Identification

  • To customer specification

Jacket Colour

  • To customer specification

Standards

  • AS/NZS 1125
  • AS/NZS 1660.5.1
  • AS/NZS 1660.5.6
  • AS/NZS 3008.1
  • AS/NZS 3008
  • AS/NZS 5000.1
  • IEC 60228
  • IEC 60332-1



Si
m		 ze
m²		 Ea
m		 rth
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
OD mm		 Nom. Braid
OD mm		 Nom. Cable
OD mm		 Current Rating
amp		 Current Rating
amp		 Approx. Wt.
kg/km
1c 6 — — 36 3.0 4.4 5.9 8.900 61 57 149
1c 10 — — 40 4.0 5.4 6.9 9.900 86 80 202
1c 16 — — 44 5.1 6.6 8.0 11.100 112 105 274
1c 25 — — 50 6.2 8.1 9.5 12.600 149 139 374
1c 35 — — 55 7.4 9.2 10.7 13.800 184 172 468
1c 50 — — 62 8.8 10.8 12.3 15.500 233 218 621
1c 70 — — 71 10.6 12.8 14.3 17.700 292 273 862
1c 95 — — 78 12.3 14.5 16.0 19.600 352 329 1042
1c 120 — — 89 14.5 17.0 18.4 22.200 417 390 1376
1c 150 — — 98 16.3 19.2 20.6 24.600 482 450 1668
1c 185 — — 108 18.0 21.3 22.7 26.900 552 516 2007
1c 240 — — 119 20.3 23.8 25.2 29.600 664 621 2531
1c 300 — — 129 22.5 26.2 27.6 32.300 766 716 3143
1c 400 — — 146 26.0 30.1 31.5 36.500 920 860 4012
1c 500 — — 162 29.2 33.7 35.1 40.500 1069 999 5031
1c 630 — — 179 32.8 37.7 39.1 44.800 1250 1168 6368
3c 1.5 1c 1.5 50 1.5 — 8.5 12.453 26 24 223
3c 2.5 1c 2.5 55 2.0 — 9.8 13.769 34 32 292
3c 4 1c 4 59 2.4 — 10.8 14.805 45 42 348
3c 6 1c 6 65 3.0 — 12.2 16.185 58 54 439
3c 10 3c 1.5 69 4.0 — 13.2 17.185 80 75 563
3c 16 3c 2.5 79 5.1 — 15.6 19.677 106 99 803
3c 25 3c 4 92 6.2 — 18.8 22.963 140 131 1114
3c 35 3c 6 102 7.4 — 21.3 25.494 173 162 1448
3c 50 3c 10 117 8.8 — 24.8 29.221 218 204 2010
3c 70 3c 10 136 10.6 — 29.2 33.982 273 255 2706
3c 95 3c 16 152 12.3 — 32.9 37.996 327 306 3427
3c 120 3c 16 175 14.5 — 38.1 43.661 385 360 4439
3c 150 3c 25 195 16.3 — 42.8 48.871 442 413 5520
3c 185 3c 25 215 18.0 — 47.4 53.840 503 470 6557
3c 240 3c 35 239 20.3 — 52.8 59.746 598 559 8378
3c 300 3c 50 262 22.5 — 58.0 65.412 683 638 10607

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.

Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires)
Size mm²50 70 95 120 150 185 240 300 400 500 630
TriCab658 969 1216 1672 2052 2508 3256 4144 5368 6832 8784
Class5378 342 465 587 734 905 1174 1468 1958 1710 2155
Class6662 927 1258 1589 1987 1401 1817 2272
Issue 19.0
