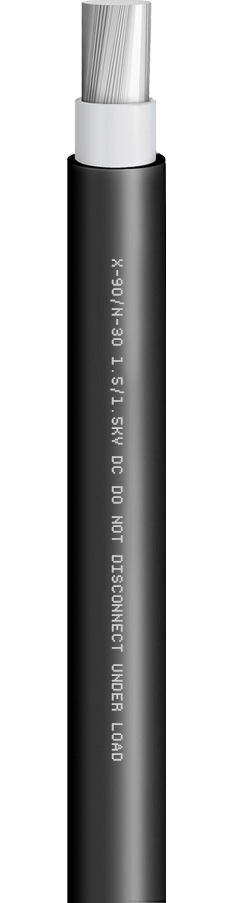

SX

Aluminium Flexible Rubber
(Fixed Wiring)

1.5/1.5 kV 90°C
Insulation X-90
Size
mm²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
OD mm		 Nom. Cable
OD mm		 Current Rating
amp		 Current Rating
amp		 Approx. Wt.
kg/km
6 22.3 3.0 4.4 7.4 51 46 92
10 25.3 4.0 5.4 8.4 70 64 134
16 28.3 5.0 6.4 9.4 94 85 190
25 33.4 6.2 8.1 11.1 125 114 281
35 36.9 7.4 9.2 12.3 155 141 373
50 41.9 8.8 10.8 14.0 196 178 511
70 48.1 10.6 12.8 16.0 248 225 726
95 53.9 12.3 14.5 18.0 298 271 902
120 61.9 14.5 17.0 20.6 354 322 1229
150 69.2 16.3 19.2 23.1 409 372 1556
185 75.7 18.0 21.3 25.2 470 427 1874
240 83.9 20.3 23.8 28.0 565 514 2395
300 91.9 22.5 26.2 30.6 650 591 3015
400 105.1 26.0 30.1 35.0 780 709 3882
500 116.8 29.2 33.7 38.9 903 821 4883
630 129.6 32.8 37.7 43.2 1052 956 6110

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.

Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires)
Size mm²50 70 95 120 150 185 240 300 400 500 630
TriCab658 969 1216 1672 2052 2508 3256 4144 5368 6832 8784
Class5378 342 465 587 734 905 1174 1468 1958 1710 2155
Class6662 927 1258 1589 1987 1401 1817 2272
Issue 19.0
