Flexible Rubber Instrumentation Cable
Ship Loaders & Cranes
Construction
Conductor
Fine Wire Plain or Tinned Annealed Copper to IEC 60228 and AS/NZS 1125
Insulation
LSFLEX® R-80 (X-HF-90), Cross-Linked, Thermoset, Elastomer
Overall Screen
Aluminium Laminate Tape with Drain Wire
Separator
Polypropylene Tape
Jacket
E-Rubber ® T-25 Thermoplastic Elastomer, Halogen Free, Flame Retardant. Resistant to chemicals, oil, grease, mud, hydrolysis, ozone and UV. Excellent resistance to abrasion, cuts and tear propagation. Submersible in fresh or sea water to 100m.
Operating Temp
-40°C to +90°C
Voltage Rating
110 Volts

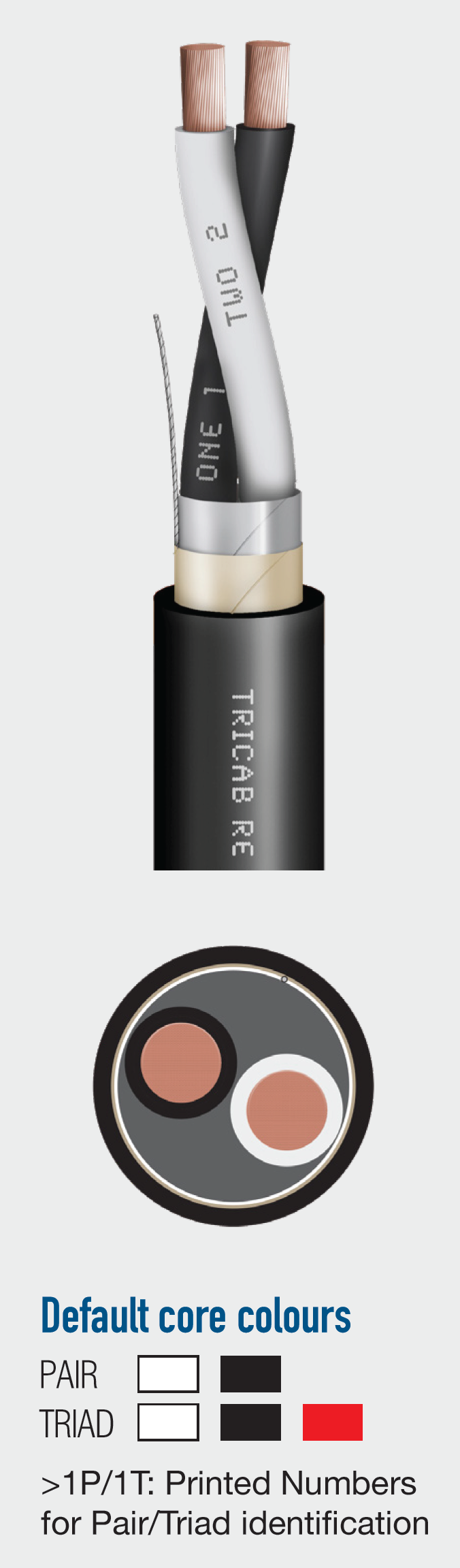

Core Colour
Default colours or to customer specification
Jacket Colour
Black or to customer specification
Standards
AS/NZS 1125
AS/NZS 3808
IEC 60228
AS/NZS IEC 60332-1 – Flame Test
AS/NZS IEC 60754 - Halogen
NEK TS 606 – Oil & Mud
Compliance
m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Ins. OD mm |
Nom. Cable OD mm |
Approx. Wt. kg/km |
|---|
Issue 19.0
