XU

Aluminium Flexible Rubber
Coll. Scr. & Braid VSD/VFD

0.6/1kV 90°C
Insulation X-90
XU

Typical Applications

90°C Flexible Collective Screened and Braided cable suitable for Variable Speed Drives, Variable Frequency Drives and Electric Motor applications.

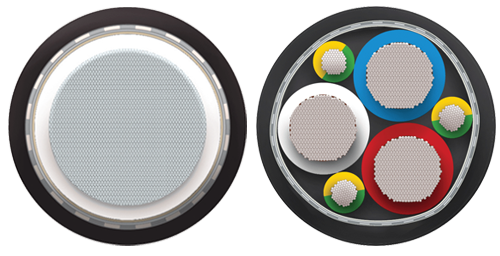

Standard Core Configuration

Other Colours available on request

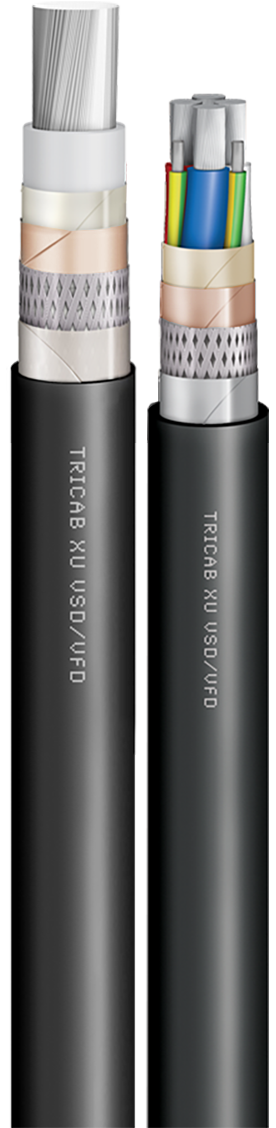

Construction

Conductor Conductor Fine wire EC1350 Aluminium to IEC 60228 and AS/NZS 1125.

Insulation LSFLEX® XL-20(X-90), Cross-Link, Polyethylene, Elastomeric.

Separator Polypropylene tape

Screen Copper Laminate tape

Braid Tinned Copper Wire braid(90%)

Separator Polypropylene tape

Jacket E-RUBBER® N-30, Elastomeric, Flame Retardant. Splash resistant oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Best Practice PVC. Anti-Termite/Rodent Jacket is Available.

Operating Temperature

  • -15°C to 90°C

Voltage Rating

  • 600/1000Volts

Core Identification

  • To customer specification

Jacket Colour

  • To customer specification

Standards

  • AS/NZS 1125
  • AS/NZS 1660.5.1
  • AS/NZS 1660.5.6
  • AS/NZS 3008.1
  • AS/NZS 3008
  • AS/NZS 5000.1
  • IEC 60228
  • IEC 60332-1
Installation Guide
Si
m		 ze
m²		 Ea
m		 rth
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
OD mm		 Nom. Braid
OD mm		 Nom. Cable
OD mm		 Current Rating
amp		 Approx. Wt.
kg/km

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.
Issue 19.0
