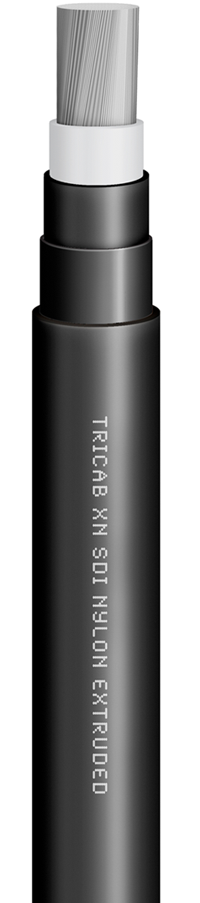

XN

Aluminium Flexible Nylon Extruded
Termite Resistant

0.6/1kV 90°C
Insulation X-90
XN

Typical Applications

Flexible nylon power and control cable suitable for use in Mains, Sub-Mains and Final Sub Circuits in termite prone areas the jacket causes aversion, discomfort and repellence towards rodents, animals, birds, termites and insects.

Standard Core Configuration

1C:+E:
2C:+E:
3C:+E:
4C:+E:

Other Colours available on request

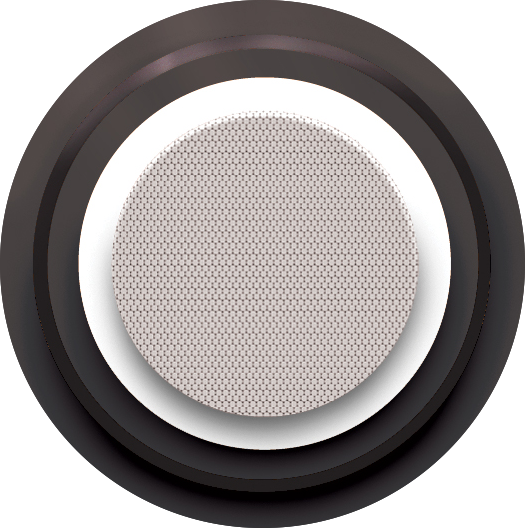

Construction

Conductor Conductor Fine wire EC1350 Aluminium to IEC 60228 and AS/NZS 1125.

Insulation LSFLEX® XL-20 (X-90), Cross-Linked, Polyethylene

Jacket E-RUBBER® N-30 Elastomeric, Flame Retardant, Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance.

Nylon Extruded nylon protective barrier

Sacrificial Overjacket E-RUBBER® N-30, Elastomeric, Flame Retardant, Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Best practice PVC.

Operating Temperature

  • -15°C to 90°C

Voltage Rating

  • 600/1000Volts

Core Identification

  • To customer specification

Jacket Colour

  • To customer specification

Standards

  • AS/NZS 1125
  • AS/NZS 3008.1
  • AS/NZS 3808
  • AS/NZS 5000.1
  • AS/NZS 1660.5.1
  • AS/NZS 1660.5.6
  • IEC 60228
  • IEC 60332-1
Installation Guide
Si
m		 ze
m²		 Ea
m		 rth
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
RT mm		 Nom. Cable
OD mm		 Current Rating
amp		 Approx. Wt.
kg/km

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.
Issue 19.0
