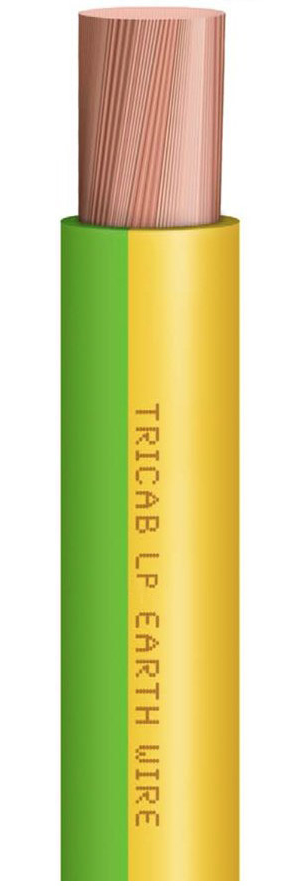

LP

Flexible Rubber
Building Wire

0.6/1kV 105°C
Insulation V90-HT
Size
mm²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Cable
OD mm		 Current Rating
amp		 Current Rating
amp		 Approx. Wt.
kg/km
.5 6.5 0.9 2.6 9 8 11
.75 7.0 1.1 2.8 12 11 13
1 7.3 1.2 2.9 18 16 16
1.5 8.0 1.5 3.2 22 20 20
2.5 9.3 2.0 3.7 30 27 32
4 11.4 2.5 4.5 40 36 47
6 12.8 3.0 5.1 51 46 66
10 15.2 4.0 6.1 70 64 105
16 17.7 5.0 7.1 94 85 157
25 21.8 6.2 8.7 125 114 243
35 24.6 7.4 9.9 155 141 332
50 29.2 8.8 11.7 196 178 471
70 33.8 10.6 13.5 248 225 675
95 39.0 12.3 15.6 298 271 852
120 45.4 14.5 17.8 354 322 1157
150 51.0 16.3 20.0 409 372 1471
185 56.4 18.0 22.1 470 427 1788
240 63.2 20.3 24.8 565 514 2303
300 69.9 22.5 27.4 650 591 2918
400 79.8 26.0 31.3 780 709 3750
500 89.0 29.2 34.9 903 821 4731
630 98.2 32.8 38.5 1052 956 5899

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.

Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires)
Size mm²50 70 95 120 150 185 240 300 400 500 630
TriCab658 969 1216 1672 2052 2508 3256 4144 5368 6832 8784
Class5378 342 465 587 734 905 1174 1468 1958 1710 2155
Class6662 927 1258 1589 1987 1401 1817 2272
Issue 19.0
