Kevlar Braided Rubber Power & Control
Ship Loaders & Cranes

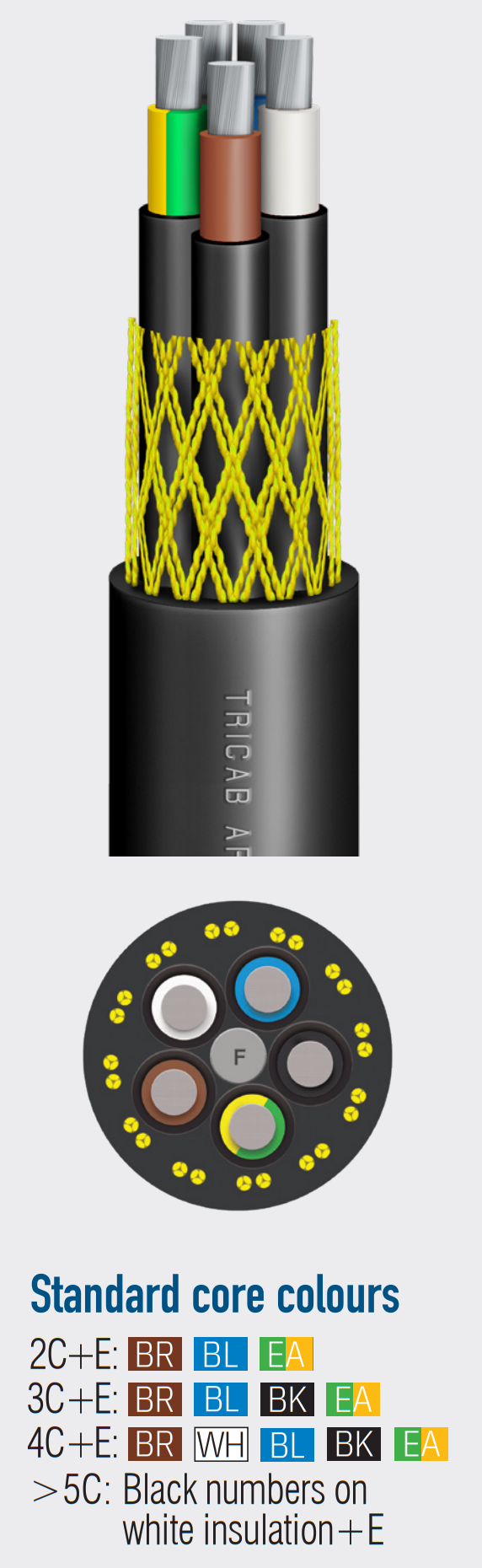

Construction
Conductor
Fine Wire Plain or Tinned Annealed Copper to IEC 60228 and AS/NZS 1125, Class 5 & 6
Insulation
LSFLEX® R-80 (X-HF-90) Cross-linked, Thermoset, Elastomer
Inner Jacket
E-Rubber ® T-25 Thermoplastic Elastomer
Reinforcement
High tensile strength Kevlar braid embedded in the outer jacket
Outer Jacket
E-Rubber ® T-25 Thermoplastic Elastomer, Halogen Free, Flame Retardant. Resistant to chemicals, oil, grease, mud, hydrolysis, ozone and UV. Excellent resistance to abrasion, cuts and tear propagation. Submersible in fresh or sea water to 100m. Suitable for reeling/ unreeling applications.
Operating Temp
-40°C to +90°C
Voltage Rating
600/1000 Volts
Core Colour
Default colours or to customer specification
Jacket Colour
Black or to customer specification
Standards
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1
IEC 60228
AS/NZS IEC 60332-1 – Flame Test AS/NZS IEC 60754 - Halogen NEK TS 606 – Oil & Mud
Compliance
m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Cable OD mm |
Current Rating amp |
Approx. Wt. kg/km |
|---|
Continuous current carrying capacities are calculated according to NEC Table 310.15 (B) (17).
| Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires) |
| Size mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TriCab | 658 | 969 | 1216 | 1672 | 2052 | 2508 | 3256 | 4144 | 5368 | 6832 | 8784 |
| Class5 | 378 | 342 | 465 | 587 | 734 | 905 | 1174 | 1468 | 1958 | 1710 | 2155 |
| Class6 | 662 | 927 | 1258 | 1589 | 1987 | 1401 | 1817 | 2272 |
