Flexible Rubber Power & Control Cable
Temporary Power
Construction
Conductor
Fine Wire Plain or Tinned Annealed Copper to IEC 60228 and AS/NS 1125, class 5 & 6.
Insulation
LSFLEX® R- 70 (X -HF-110) Cross-linked, Thermoset, Elastomer
Jacket
E-Rubber® T-24 Thermoplastic Elastomer Flame Retardant, Low Smoke Zero Halogen, Resistant to chemicals oil, grease, microbes, hydrolysis, Ozone and UV. Excellent resistance to abrasion cuts and tear propagation. Submersible in fresh or sea water to 500m
Operating Temp
-70°C to +110°C
Voltage Rating
600/1000 Volts

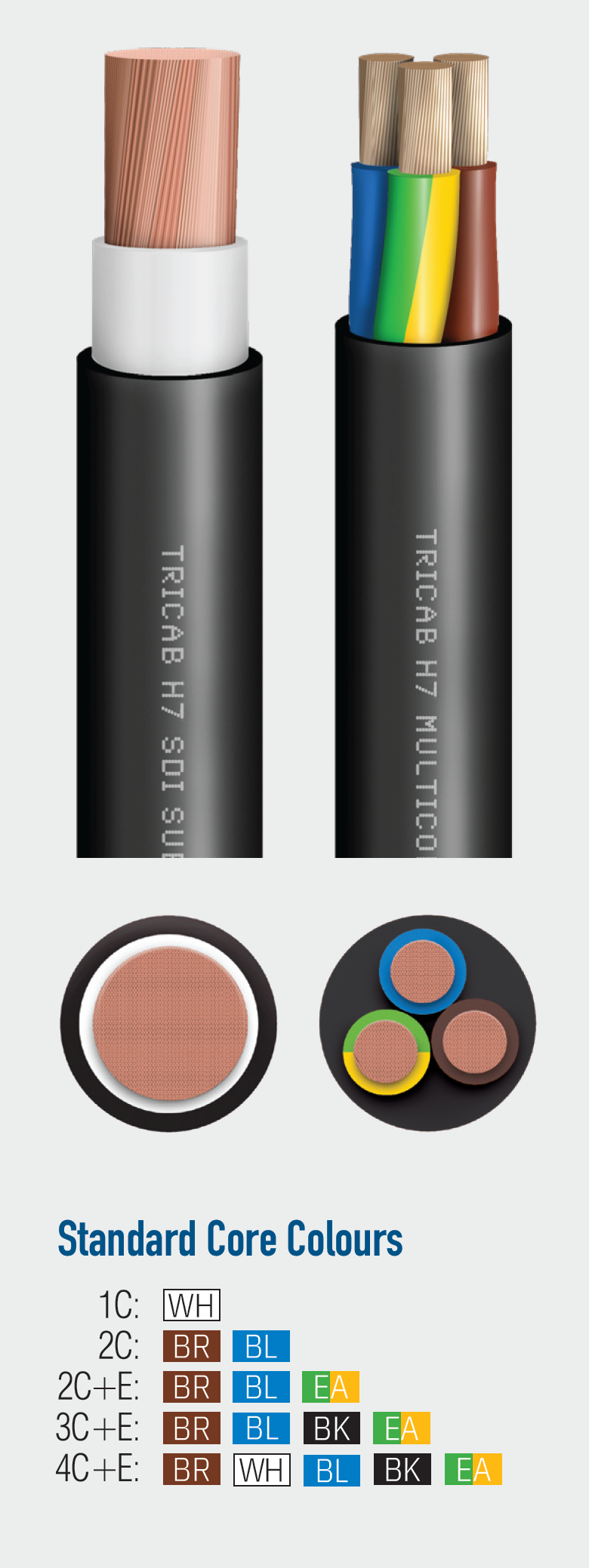

Core Colour
To customer specifiction
Jacket Colour
Black or to customer specification
Standards
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1
IEC 60228
Compliance
m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Ins. OD mm |
Nom. Cable OD mm |
Current Rating amp |
Approx. Wt. kg/km |
|---|
Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.
| Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires) |
| Size mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TriCab | 658 | 969 | 1216 | 1672 | 2052 | 2508 | 3256 | 4144 | 5368 | 6832 | 8784 |
| Class5 | 378 | 342 | 465 | 587 | 734 | 905 | 1174 | 1468 | 1958 | 1710 | 2155 |
| Class6 | 662 | 927 | 1258 | 1589 | 1987 | 1401 | 1817 | 2272 |
