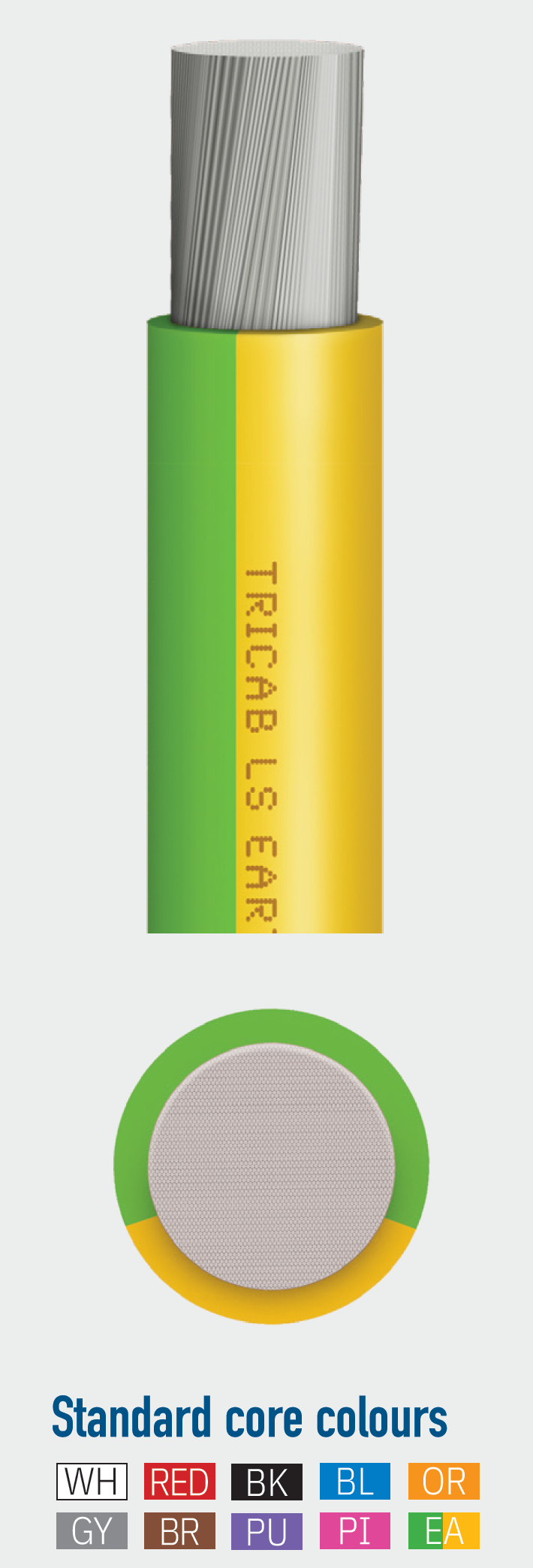

Flexible LSZH
Switchboard/ Panel Wire
Construction
Conductor
Fine wire plain or tinned annealed copper to IEC 60228 and AS/NZS 1125.
Insulation
LSFLEX® R-125 (X-HF-110), Flame Retardant, Cross-Linked, Thermoset, Elastomeric, Low Smoke Zero Halogen. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. 125°C max operating temperature conforms to UL1581. Anti-Termite/Rodent Insulation is Available.
Operating Temp
-40°C to 125°C
Voltage Rating
600/1000 Volts
Standards
AS/NZS 1125
AS/NZS 1660.5.1
AS/NZS 1660.5.2
AS/NZS 1660.5.4
AS/NZS 1660.5.6
AS/NZS 3008.1
AS/NZS 3808
AS/NZS 5000.1
IEC 60228
IEC 60332-1
IEC 60332-3-22
IEC 60754-2
IEC 61034-1&2
Compliance
m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Cable OD mm |
Current Rating amp |
Approx. Wt. kg/km |
|---|
Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.
| Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires) |
| Size mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TriCab | 658 | 969 | 1216 | 1672 | 2052 | 2508 | 3256 | 4144 | 5368 | 6832 | 8784 |
| Class5 | 378 | 342 | 465 | 587 | 734 | 905 | 1174 | 1468 | 1958 | 1710 | 2155 |
| Class6 | 662 | 927 | 1258 | 1589 | 1987 | 1401 | 1817 | 2272 |
