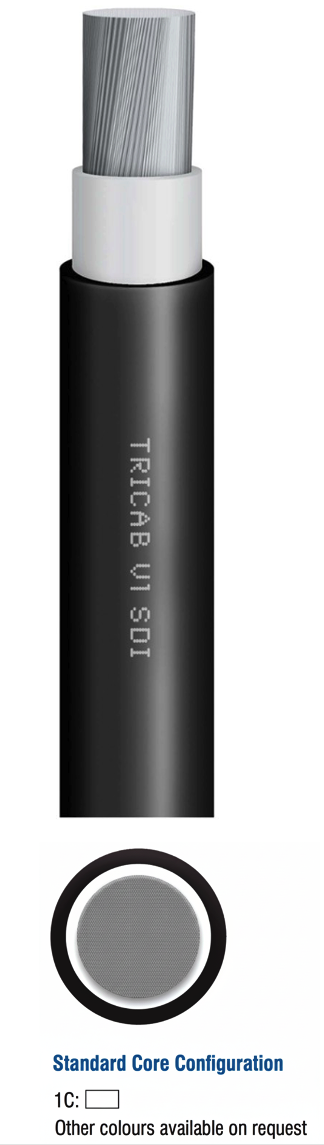

Unscreened SDI single power
Medium Voltage
Construction
Conductor
Fine wire tinned annealed copper to IEC 60228 and AS/NZS 1125.
Insulation
LSFLEX® E-125 (R-EP-125) High Grade EPR insulation type 3GI3 to VDE 0207 part 20, Crosslinked, Thermoset, Elastomeric, Low Smoke Zero Halogen. 125°C max operating temperature conforms to UL1581.
Jacket
Low-Friction E-RUBBER® S-20 Thermoplastic, Elastomeric, Flame Retardant. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Submersible to 500m. Best Practice PVC. Anti-Termite/Rodent Jacket is Available.
Operating Temp
-15°C to +110°C
Voltage Rating
1900/3300 Volts
Core Colour
White
Jacket Colour
Black or to customer specification
Standards
VDE 0207/20
VDE 0250/602
UL 1581
AS/NZS 1125
AS/NZS 3008.1
AS/NZS 1660.5.1
AS/NZS 1660.5.6
IEC 60228
IEC 60332-1
Compliance
m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Ins. OD mm |
Nom. Cable OD mm |
Current Rating amp |
Approx. Wt. kg/km |
|---|
Continuous current carrying capacities are calculated according to NEC Table 310.15 (B) (17).
| Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires) |
| Size mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TriCab | 658 | 969 | 1216 | 1672 | 2052 | 2508 | 3256 | 4144 | 5368 | 6832 | 8784 |
| Class5 | 378 | 342 | 465 | 587 | 734 | 905 | 1174 | 1468 | 1958 | 1710 | 2155 |
| Class6 | 662 | 927 | 1258 | 1589 | 1987 | 1401 | 1817 | 2272 |
