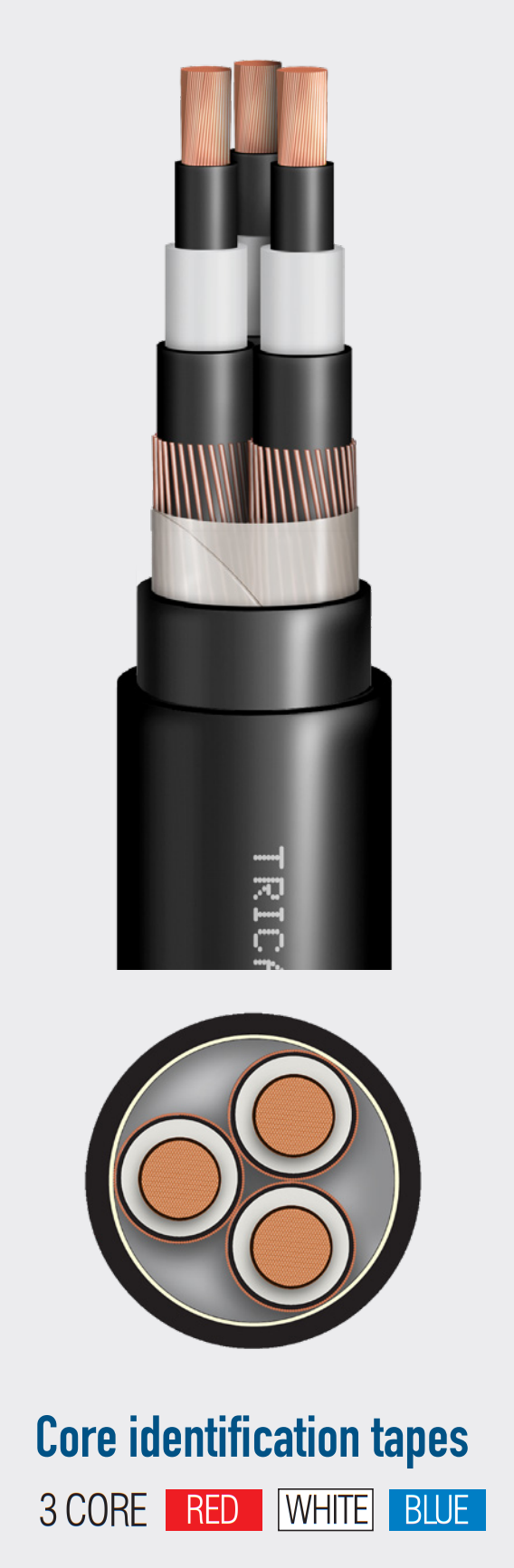

T3
Flexible Rubber MV Power
Ship Loaders & Cranes
3.8/6.6kV 90°C m |
ze m² |
Min. Bend Radius mm |
Nom. Cond. OD mm |
Nom. Ins. RT mm |
Nom. Ins. OD mm |
Nom. Cable OD mm |
Approx. Wt. kg/km |
|---|---|---|---|---|---|---|---|
| 3c | 35 | 261 | 7.4 | 2.5 | 15.5 | 43.5 | 2150 |
| 3c | 50 | 282 | 8.8 | 2.5 | 17.1 | 47.0 | 2800 |
| 3c | 70 | 314 | 10.6 | 2.5 | 19.5 | 52.2 | 3740 |
| 3c | 95 | 336 | 12.3 | 2.5 | 21.0 | 55.9 | 4550 |
| 3c | 120 | 369 | 13.5 | 2.5 | 23.3 | 61.4 | 5600 |
| 3c | 150 | 389 | 15.0 | 2.5 | 25.0 | 64.7 | 6400 |
| 3c | 185 | 421 | 16.7 | 2.5 | 26.9 | 70.1 | 7400 |
| Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires) |
| Size mm² | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 | 500 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TriCab | 658 | 969 | 1216 | 1672 | 2052 | 2508 | 3256 | 4144 | 5368 | 6832 | 8784 |
| Class5 | 378 | 342 | 465 | 587 | 734 | 905 | 1174 | 1468 | 1958 | 1710 | 2155 |
| Class6 | 662 | 927 | 1258 | 1589 | 1987 | 1401 | 1817 | 2272 |
