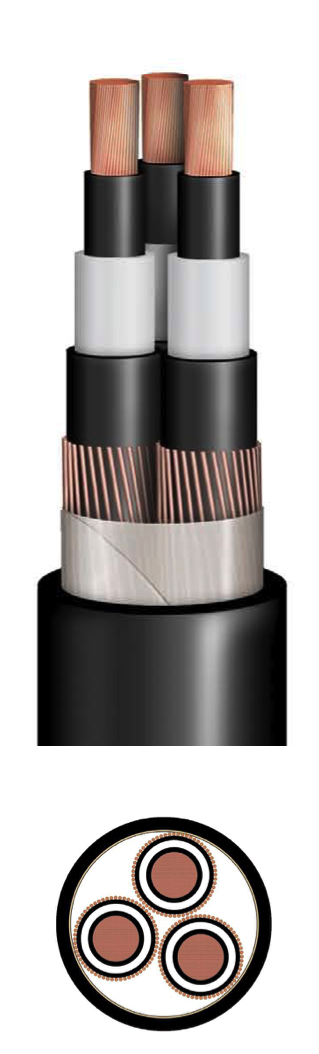

V3

Flexible Rubber Single and Multicore Power
Medium Voltage

3.38/6.6kV 90°C
Insulation EPR
Si
m		 ze
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
RT mm		 Nom. Ins.
OD mm		 Nom. Cable
OD mm		 Approx. Wt.
kg/km
1c 35 145.2 7.8 2.5 14.6 24.2 961
1c 50 154.4 9.3 2.5 16.1 25.7 1140
1c 70 168.1 11.6 2.5 18.4 28.0 1704
1c 95 177.7 13.1 2.5 20.0 29.6 2141
1c 120 193.1 15.4 2.5 22.4 32.2 2490
1c 150 204.8 17.1 2.5 24.1 34.1 2784
1c 185 217.0 19.1 2.5 26.1 36.2 3114
1c 240 233.0 21.3 2.6 28.6 38.8 3661
1c 300 248.5 24.2 2.8 30.9 41.4 4310
1c 400 276.1 27.3 3.0 35.5 46.0 5201
1c 500 299.4 31.0 3.2 40.7 49.9 6242
1c 630 324.9 34.0 3.2 42.8 54.1 7656
3c 35 261.2 7.8 2.5 14.6 43.5 2097
3c 50 282.5 9.3 2.5 16.1 47.1 2721
3c 70 313.3 11.6 2.5 18.4 52.2 3679
3c 95 335.4 13.1 2.5 20.0 55.9 4516
3c 120 368.6 15.4 2.5 22.4 61.4 5636
3c 150 391.8 17.1 2.5 24.1 65.3 6463
3c 185 421.0 19.1 2.5 26.1 70.2 7613
3c 240 454.2 21.3 2.6 28.6 75.7 9261

Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires)
Size mm²50 70 95 120 150 185 240 300 400 500 630
TriCab658 969 1216 1672 2052 2508 3256 4144 5368 6832 8784
Class5378 342 465 587 734 905 1174 1468 1958 1710 2155
Class6662 927 1258 1589 1987 1401 1817 2272
Issue 19.0
