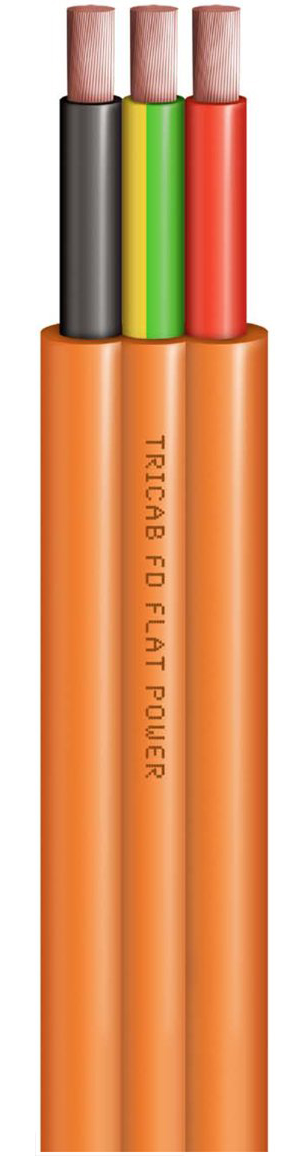

FD

Flexible LSZH Rubber
Flat

450/750V 125°C
Insulation X-HF-110
FD
Construction
Conductor

Fine wire plain or tinned annealed copper to IEC 60228 and AS/NZS 1125.

Insulation

LSFLEX® X-125 (X-HF-110) Cross-linked, Thermoset, Elastomeric, Low Smoke Zero Halogen.

Ripcord

High strength ripcord under jacket

Jacket

Low Friction LSFLEX® T-10 (HFS-110-TP), Flame Retardant, Thermoplastic, Elastomeric, Low Smoke Zero Halogen. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Non migratory. Anti-Termite/Rodent Jacket is available.

Operating Temp
-40°C to +125°C
Voltage Rating
450/750 Volts
Core identification
To customers specification
Jacket Colour
To customers specification
Standards
AS/NZS 1125
AS/NZS 1660.5.1
AS/NZS 1660.5.2
AS/NZS 1660.5.4
AS/NZS 1660.5.6
AS/NZS 3008.1
AS/NZS 3808
AS/NZS 5000.2
IEC 60228
IEC 60332-1
IEC 60332-3-22
IEC 60754-2
IEC 61034-1&2
Si
m		 ze
m²		 Ea
m		 rth
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Height
mm		 Width
mm		 Current Rating
amp		 Approx. Wt.
kg/km

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.
Issue 19.0
