Flexible LSZH Rubber
Coll. Scr. & braid VSD/VFD

0.6/1kV 125°C
Insulation X-HF-110
EU_CU

Typical Applications

Suitable for fixed wiring application where EMC protection is required.

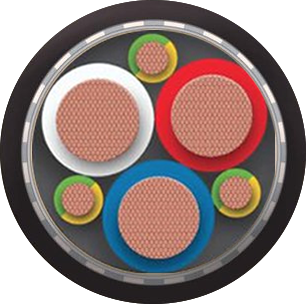

Standard Core Configuration

Other Colours available on request

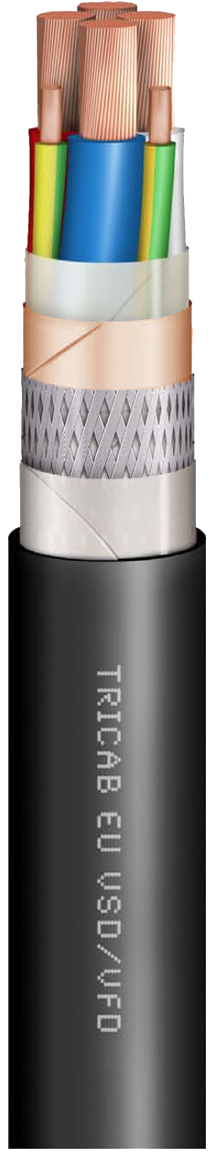

Construction

Conductor Fine wire plain or tinned annealed copper to IEC 60228 and AS/NZS 1125.

Insulation LSFLEX® XL-125 (X-10), Cross-Linked,Thermoset, Elastomeric, Low Smoke Zero Halogen. 125°C max operating temperature conforms to UL1581.

Separator Polypropylene tape

Screen Copper Laminate tape

Braid Tinned Copper Wire braid(90%)

Separator Polypropylene tape

Jacket LSFLEX® T-10 (HFS-110-TP), Flame Retardant, Cross Linked, Thermoset, Elastomeric, Low Smoke Halogen. Splash resistant to oil, skydrol, petrol, acid and sea water. Resists ozone and UV. Excellent abrasion resistance. Anti-Termite/Rodent Jacket is available.

Operating Temperature

  • -40°C to 125°C

Voltage Rating

  • 600/1000Volts

Core Identification

  • To customer specification

Jacket Colour

  • To customer specification

Standards

  • AS/NZS 1125
  • AS/NZS 1660.5.1
  • AS/NZS 1660.5.2
  • AS/NZS 1660.5.4
  • AS/NZS 1660.5.6
  • AS/NZS 3008.1
  • AS/NZS 3008
  • AS/NZS 5000.1
  • IEC 60228
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-2
  • IEC 61034-1&2



Si
m		 ze
m²		 Ea
m		 rth
m²		 Min. Bend
Radius mm		 Nom. Cond.
OD mm		 Nom. Ins.
OD mm		 Nom. Braid
OD mm		 Nom. Cable
OD mm		 Current Rating
amp		 Approx. Wt.
kg/km

Continuous current carrying capacities are calculated assuming 40° ambient temperature in free air, flexible unenclosed touching. For other installation methods, please refer to our current ratings table.

Conductor Comparison - TriCab versus Class 5 & 6 (approximate no.of wires)
Size mm²50 70 95 120 150 185 240 300 400 500 630
TriCab658 969 1216 1672 2052 2508 3256 4144 5368 6832 8784
Class5378 342 465 587 734 905 1174 1468 1958 1710 2155
Class6662 927 1258 1589 1987 1401 1817 2272
Issue 19.0
