Z36
Copper 12 Tonne Crimping Dies
|

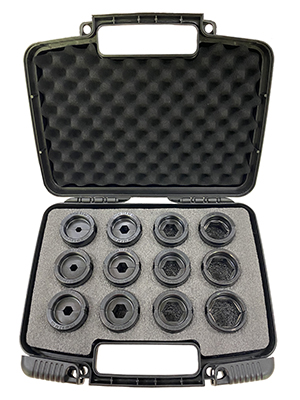

DescriptionTriCab Crimping Dies are suitable for C-type 12 Tonne crimp tools. The die kit contains 12 sets of dies that cover 16mm² to 400mm² size Copper conductors. |
Advantages
- Packed in plastic storage box
- Clear markings of die A/F
- Stamps die size on lug
Material
- Heat-treated Carbon Steel
Inspection & Testing
- Visual inspection
- Physical measurement
- Crimp test
Datasheet
| COPPER CRIMPING DIE SELECTION | ||
|---|---|---|
| Copper Conductor Size mm2 |
Die A/F mm |
Length of Crimp Face mm |
| 16 | 6.3 | 17.5 |
| 25 | 7.7 | 17.5 |
| 35 | 9.2 | 17.5 |
| 50 | 10.4 | 17.5 |
| 70 | 11.5 | 17.5 |
| 95 | 14.2 | 17.5 |
| 120 | 16.5 | 14.0 |
| 150 | 18.3 | 14.0 |
| 185 | 20.0 | 14.0 |
| 240 | 23.1 | 10.0 |
| 300 | 26.0 | 10.0 |
| 400 | 28.1 | 10.0 |
** There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
©
