Z29
![]() |

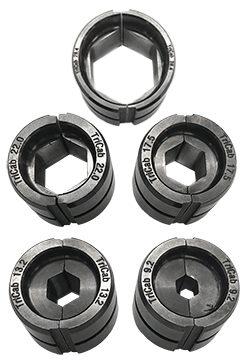

DescriptionTriCab Crimping Dies are suitable for C-type 12 Tonne crimp tools. The die kit contains 5 sets of dies that cover 6mm2 to 300mm2 ALI-FLEX Conductors. Available as a set and individually. Please see below codes.
Z29-ADXX/6J300 - Die Set (5 Dies as per the table)
|
Advantages
- Packed in durable plastic storage box
- Clear markings of die A/F
- Stamps die size on lug
Material
- Heat-treated Carbon Steel
Inspection & Testing
- Visual inspection
- Physical measurement
- Crimping, Mechanical Pulling and Temperature Rise Test to AS/NZS4325-1 and IEC61238-1-1
Al Conductor Size mm2 |
Die A/F mm |
Length of Crimp Face mm |
---|---|---|
6-25 | 9.0 | 22.0 |
35 | 13.2 | 22.0 |
50-120 | 17.3 | 22.0 |
150-185 | 22.0 | 18.0 |
240-300 | 28.4 | 18.0 |
There is a +5% tolerance to the NOMINAL values due to manufacturing process variations. TriCab is not liable for any errors, omissions, etc., and reserves the right to modify specifications at any time.
